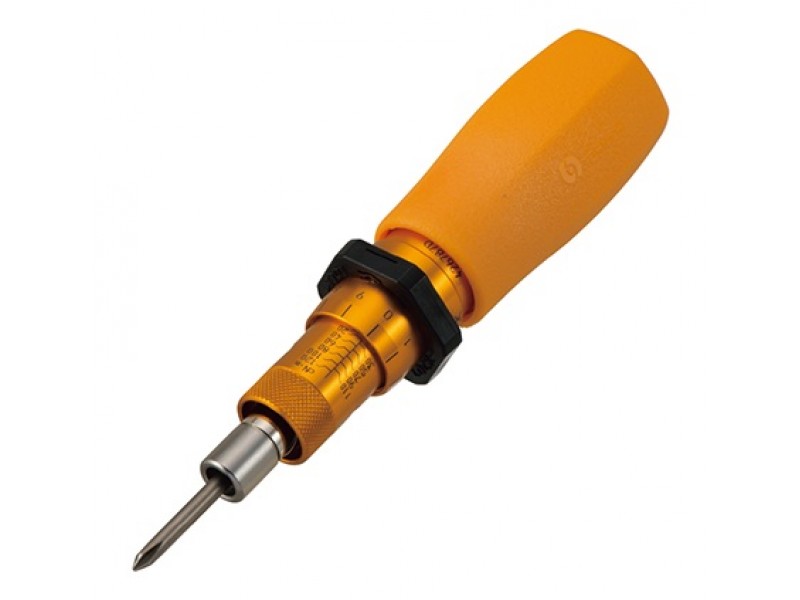

  • RTD Click Type Torque Screwdriver

Torque screwdriver with over-torque prevention rotary-slip mechanism for various applications from mass production to maintenance work.

Application:

  • Used for various kinds of tightening operation from mass production to maintenance work.


Features:

  • Rotary slip style.
  • RTD is designed to ratchet freely after reaching the set torque to prevent applying over-torque.
  • Toggle clutch torque detection mechanism for enhanced durability.
  • Easy torque adjustment with scale.
  • All models include the locking mechanism which prevents changing of torque during use.
  • Hexagonal locker prevents driver from rolling and locker can be replaced with new one.
  • Counterclockwise tightening model available upon request. Please contact us.


Specifications:

Accuracy ± 3%
S.I. MODELRTD15CNRTD30CNRTD60CNRTD120CNRTD260CNRTD500CN
TORQUE RANGE
[cN・m]		MIN.～MAX.2～154～3010～6020～12060～260100～500
GRAD.0.10.20.5125
METRIC MODEL1.5RTD3RTD6RTD12RTD26RTD50RTD
TORQUE RANGE
[kgf・cm]		MIN.～MAX0.2～1.50.4～31～62～126～2610～50
GRAD.0.010.020.050.10.20.5
AMERICAN MODELRTD20ZRTD1.3IRTD40ZRTD2.6IRTD80ZRTD5IRTD150ZRTD10IRTD22IRTD40I
TORQUE RANGE
[ozf・in/lbf・in]		MIN.～MAXozf・in
6～20		llbf・in
0.2～1.3		ozf・in
15～40		lbf・in
0.4～2.6		ozf・in
20～80		lbf・in
1～5		ozf・in
30～150		lbf・in
2～10		lbf・in
6～22		10～40
GRAD.ozf・in
0.2		lbf・in
0.01		ozf・in
0.5		lbf・in
0.02		ozf・in
1		lbf・in
0.05		ozf・in
2		lbf・in
0.1		lbf・in
0.2		0.5
APPLICABLE SCREWSMALL SCREW（M1.8）M2（M2.2）M2.5,M3（M3.5）M4（M4.5）M5,M6
TAPPING SCREW（M1.4）M1.6（M1.8）M2（M2.2）M2.5M3（M3.5）M4（M4.5）
DIMENSION
[mm]		OVERALL LENGTHL'101109132149155
GRIPD11619.52430.533
BODYD210.714.8182325
D311
L11824
L276.5～84.381.1～90.1100～110117.8～127.8129～141
LOCKERd23.529334145
W21.526.53037.541
WEIGHT [kg]0.050.080.160.270.32


Note: Auxiliary tightening tool for RTD500CN can be attached (sold separately).


Standard Accessories:

Resin grip (for RTD120CN and RTD260CN only) supplied as standard accessory

Standard accessory: Preset hook spanner (for RTD260CN and RTD500CN only).


Dimensions:
