Industry Standard and System Certificate:

• This product has passed the ISO 9001:2015 standard certification(certificate code:18ACM6508Q).

• This product has passed CE / EN 55014-2:2015 & EN 61326-1; 2013) standard certification.

• This product has passed FCC????FCC PART15 SUBPART B:2017????standard certification.

• Comply with the limit requirements of ANSI/ESD S20.20 for audit inspection and conformity verification test of ionization equipment.

• Comply with ANSI/ESD STM 3.1 requirements for audit inspection and testing of ionization equipment.

• Meet the requirements of ANSI/ESD SP 3.3 for air ionization equipment to conduct regular compliance verification tests.

• Comply with the limit requirements of IEC 61340-5-1 for audit inspection and conformity verification test of ionization equipment.

• Comply with the limit requirements of JESD 625-B on the verification test of ionization equipment.

• Comply with the requirements of GJB3007A-2009 on the verification test of ionization equipment.

• The products have been recognized and widely used by customers in Europe, America and Southeast Asia.

• Automatic cleaning function: built-in cleaning brush, it starts automatically every time when it is turned on, and the emitter can also be manually cleaned with one click. The automatic cleaning cycle can also be preset within 1-999 hours.

• Adopting high-frequency AC ionization technology: It produces a large number of positive and negative ions and a good balance. It can blow off the surface dust while neutralizing the electrostatic surface, suitable for fast-moving and uneven objects

• Good environmental compatibility: built-in shielding, no electromagnetic interference, can meet the production process of different electronic assembly, semiconductor packaging, flat panel display and life technology.

Product Description:

• Automatic cleaning function: built-in cleaning brush, it starts automatically every time when it is turned on, and the emitter can also be manually cleaned with one click. The automatic cleaning cycle can also be preset within 1-999 hours.
• Adopting high-frequency AC ionization technology: It produces a large number of positive and negative ions and a good balance. It can blow off the surface dust while neutralizing the electrostatic surface, suitable for fast-moving and uneven objects
• Good environmental compatibility: built-in shielding, no electromagnetic interference, can meet the production process of different electronic assembly, semiconductor packaging, flat panel display and life technology.

Features	Benefits
Automatic cleaning discharge emitter	Can reduce the frequency of manual maintenance
The whole machine lock function to prevent accidental touch	Prevent non-engineers from adjusting operating parameters without authorization
Eliminate static electricity speed 30CM < 2sec	Fast elimination speed can meet the static elimination of moving objects
Automatic ion balance	No need for manual adjustment
LED alarm	The high voltage/fan is abnormal, the alarm will be red and the buzzer will sound
The front windshield can be removed in one second, with automatic power-off protection	Can be quickly maintained, power failure protects maintenance personnel from being injured
Electrostatic spraying of shell / stainless steel case	Optional diffuse windshield and directional windshield
Communication mode	Default(none),support RS485 or wireless communication

Specifications:

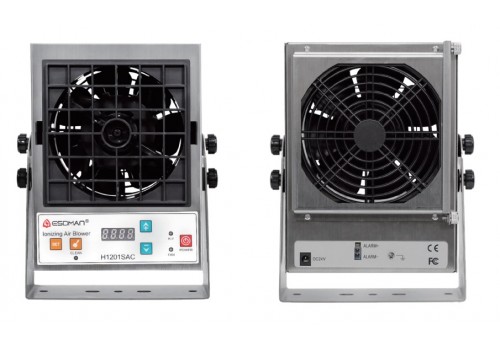

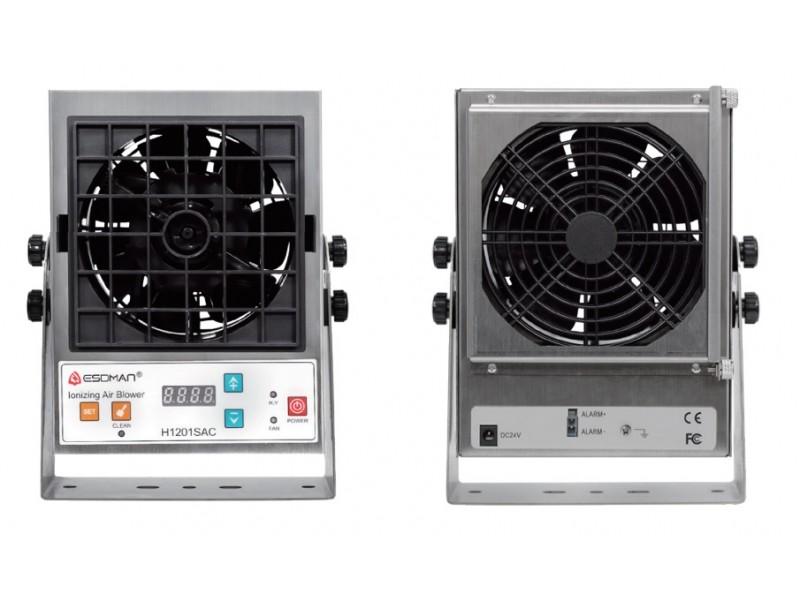

Model	H1201SAC
Input Voltage	DC24V±5%
Operating Power	Approx 12VA
Decay Time	Approx 2s ( 30 cm distance, maximum air volume, No dust filter)
Ion Balance	±10V
Technology	High Frequency AC Power
Emitter Material	Tungsten Alloy
Discharge emitter can be replaced	Can be replaced, can extend the service life of the machine
Alarm Display	High pressure running/abnormal indicator, fan running/abnormal indicator, cleaning indicator
Signal Output	The red light is on when the high voltage or the fan is abnormal, output the DC24V signal
Air Volume	2.2-4.1 m³/min
Filter	Optional 30ppi filter cotton (120x120mm)
Ozone	Below 0.04ppm (distance 150mm)
Operating Env.	0-40°C 20-75%RH (non condensing)
Size	190Hx143Wx90Dmm (without bracket)
Weight	Approx 1.4kg
Case Material	Electrostatic spraying of double-sided galvanized steel sheet
Warranty	One year
Certifications	CE, FC
