Technical Information

General Information

• Snap-in mounting from front

• Solder terminal or quick connect from single terminal

• Protection class 1

• Integral plug retention feature

Technical Data

Rating: 16A/250VAC

Insulation Resistance:

10MΩ (500VDC, 1 Min.)

Dielectric Strength:

2KV (50Hz 1 Min) to accessible surfaces

Materials Socket:

Black Thermoplastic UL94V-0

Approvals

16 A/250VAC: ENEC 05, KEMA KEUR

20 A/250VAC: UL

Standards

IEC/EN 60320-2-2/FUL498

CSA C22.2 No 182.3-M1987

Patent

UK Number: 2463468B

EU Number: EP2321879A

HK Number: HK1141901

Chinese Patent Application No:

CN 102150330 A

Other worldwide patents pending

Product

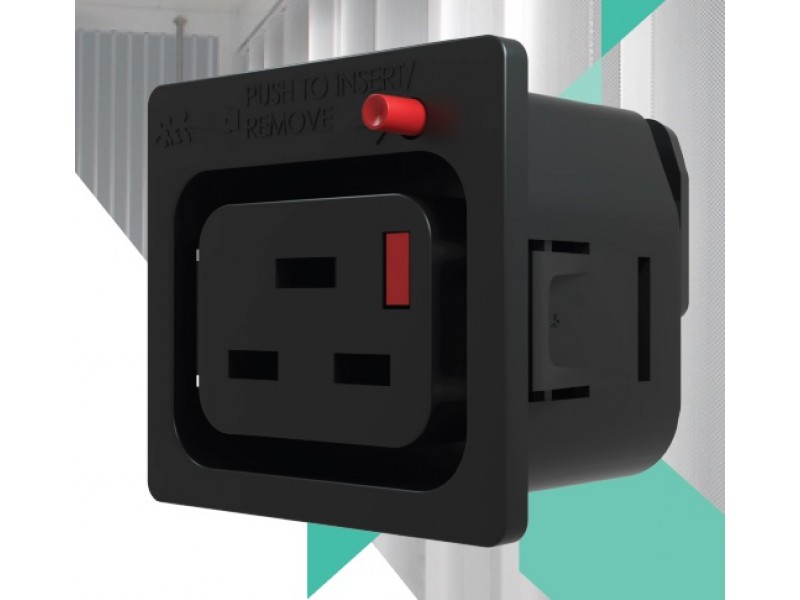

• Black & White IEC320 Snap in 1mm or 1.5mm Panel Thickness

• Quick Connector/Solder 6.3 x 0.8mm
