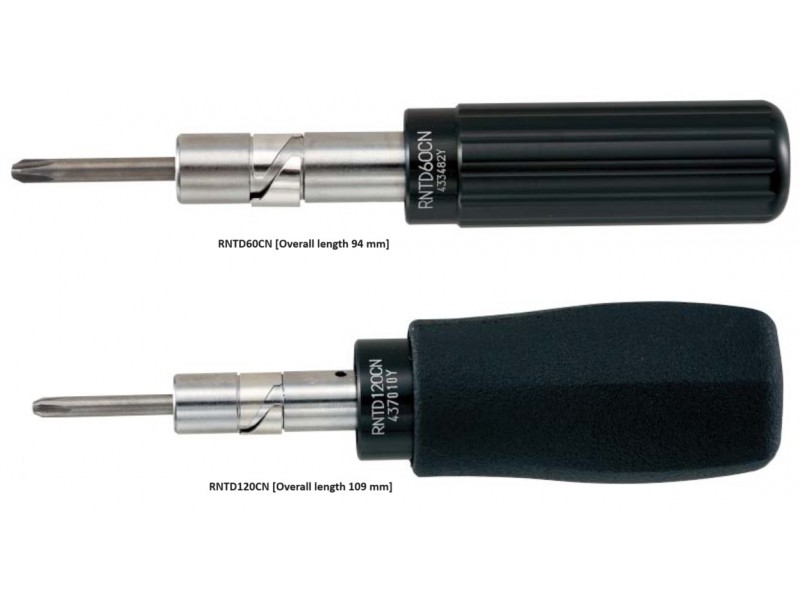

Preset torque screwdriver with rotary-slip mechanism to prevent over-tightening.

Application:

Used for repeated preset torque tightening during mass production and maintenance.

Features:

• Same features as RTD except designed for tightening small screws.
• Preset style.
• Enhanced reliability and durability by adopting toggle clutch torque mechanism.
• RTD is designed to ratchet freely after reaching the set torque to prevent applying over-torque.
• Preset style is ideal for applications which requires the same torque value on the line.
• RNTD500CN comes with an auxiliary handle.
• Counterclockwise tightening model available upon request. Please contact us.

Specifications:

Accuracy ± 3%
MODEL					RNTD15CN	RNTD30CN	RNTD60CN	RNTD120CN	RNTD260CN	RNTD500CN
TORQUE RANGE [cN･m]		MIN.～MAX.			5～15	10～30	20～60	40～120	100～260	200～500
TORQUERANGE [kgf･cm]		MIN.～MAX.			0.5～1.5	1～3	2～6	4～12	10～26	20～50
TORQUE RANGE [lbf･in]		MIN.～MAX.			0.5～1.3	1～2.5	2～5	4～10	10～22	20～40
APPLICABLE SCREW		SMALL SCREW			（M1.8）	M2（M2.2）	M2.5, M3	（M3.5）	M4（M4.5）	M5, M6
		TAPPING SCREW			（M1.4）M1.6	（M1.8）M2	（M2.2）M2.5	M3（M3.5）	M4	（M4.5）
DIMENSION [mm]		OVERALL LENGTH		L'	94			109	110	119
		GRIP		D1	19.5			24	30.5	33
		BODY COLOR			Black
		BODY		D4	11
				L1	24
				L2	59			76	79	88
		HANDLE		d	ー					8
				R	ー					120
WEIGHT [kg]					0.07			0.11	0.18	0.27

Standard accessory:

Comes with resin handle (for RNTD120CN and RNTD260CN only).

RNTD500CN comes with an auxiliary handle.

Dimensions:

RNTD15CN～260CN

RNTD500CN
