Application:
Specially designed to insulate and seal automotive wire splices and components in an under-the-hood automotive environment.
Specially formulated to function at an extended temperature range.
Characteristics:
4:1 shrink ratio allows a few sizes to cover a wide range of splice and component diameters.
Flame-retardant and mechanically tough, the tubing provides strain relief and abrasion protection of wire splices, terminals, and other components.
Thick adhesive liner forms an effective barrier against fluids and moisture and performs well at an extended temperature range RoHS/ELV compliant
Material Data:
Material: Polyolefin
Operating temperature: -40 ̊C~150 ̊C
Minimum shrink temperature: 110 ̊C
Minimum full recovery temperature: 135 ̊C

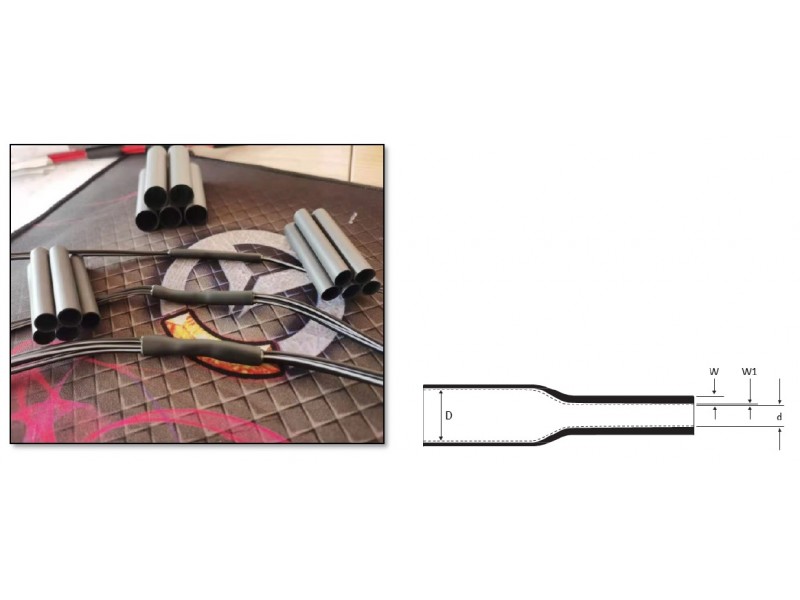

Product selection:
Part No |
Size (mm) |
As supplied (mm) |
After recovered (mm) |
Standard Length |
||
ID (D) min |
ID (d) max |
|
|
(Meter) |
||
AISES-HT150-1 |
4.00 |
4.0 |
≤1.00 |
1.10±0.15 |
0.60 |
1.22M/Pcs |
AISES-HT150-2 |
5.75 |
5.75 |
≤1.25 |
1.15±0.10 |
0.65 |
1.22M/Pcs |
AISES-HT150-3 |
7.40 |
7.40 |
≤1.65 |
1.52±0.20 |
0.76 |
1.22M/Pcs |
AISES-HT150-4 |
9.02 |
9.02 |
≤2.30 |
1.52±0.20 |
0.76 |
1.22M/Pcs |
AISES-HT150-5 |
11.00 |
11.00 |
≤2.40 |
2.29±0.30 |
1.40 |
1.22M/Pcs |
AISES-HT150-6 |
14.00 |
14.00 |
≤3.00 |
2.35±0.35 |
1.45 |
1.22M/Pcs |
AISES-HT150-7 |
18.30 |
18.30 |
≤4.35 |
2.54±0.35 |
1.52 |
1.22M/Pcs |
Technical Data:
Property |
Unit |
Performance requirements |
Testing method |
Test result |
|
Longitudinal change |
% |
-10 to 0 |
ASTM D2671 /U224 |
-5 to 0 |
|
Tensile strength |
Mpa |
≥10.4 |
ASTM D2671 |
15.65 |
|
Breakage elongation |
% |
≥200 |
ASTM D2671 |
318.48 |
|
Cold impact : 4H, -40±2°C |
\ |
No crack |
UL224 |
Pass |
|
Heat Shock : 4H, 250±3°C (only jacket) |
\ |
No drip , no flow, no crack |
UL224 |
Pass |
|
Heat aging (only jacket) |
Tensile strength |
Mpa |
≥7.3 |
UL224 |
11.45 |
168H, 175±2°C |
Breakage elongation |
% |
≥100 |
UL224 |
253.82 |
Volume resistivity |
Ω.cm |
≥1x1012 |
ASTM D2671 |
1x1013 |
|
Copper corrosion |
\ |
158 ℃,168h,Pass |
UL224 |
Pass |
|
Flammability(only jacket) |
S |
60S self-extinguish |
ASTM D2671 |
15 |
|
Water absorption |
% |
≤1.0% |
ASTM D570 |
0.3 |
|
Standard
color: Black & Clear
Flame-retardant, adhesive lined semirigid Polyolefin Tubing # AISES-HT150
