Character:
Input Polarity Reverse Protection
Output Polarity Reverse Protection
Output Short Protection
Over Heating Protection
Overload Protection
Description:
Auto Transfer Switch with master input and slave input,
which delivers power as slave input once master input fail automatically.
Specifications:
Model No. | PM-2412-10A |
OUTPUT POWER (CONTINUOUS) | 10A |
OUTPUT POWER (MAX.) | 15A |
STANDBY CURRENT | < 0.02A |
INPUT VOLTAGE | DC 20V ~ 30V |
OUTPUT VOLTAGE | DC 12V ~ 13.8V |
EFFICIENCY | > 90% |
COOLING | BY AIR CONVECTION |
INTPUT POLARITY REVERSE | DIODE PROTECTION |
OUTPUT POLARITY REVERSE | CIRCUIT PROTECTION |
OUTPUT SHORT | OUTPUT SHORT CIRCUIT PROTECTION |
OVER HEATING | CIRCUIT PROTECTION |
OVER LOAD | CIRCUIT PROTECTION |
FUSE | 10A x 1PC |
Net weight (by Kg/s) | 0.26 |
Dimensions (L x W x H mm) | 70 x 73 x 45 |

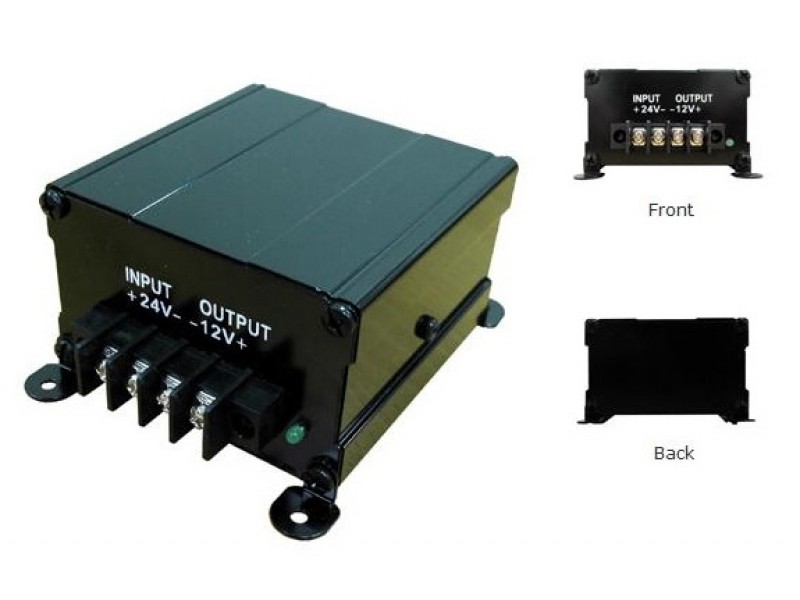

คอนเวอร์เตอร์ DC to DC 10Amp
- รหัส/รุ่น: PM-2412-10A
- สถานะสินค้า: มีสินค้า
-
0.00 บาท
- ราคาไม่รวมภาษี: 0.00 บาท
